Review on out of Control Inducement and Criteria of Operation and Stability of High Speed Vehicle
-
摘要: 首先介绍了高速飞行器设计所面临的静稳定裕度、航向操纵性、三通道耦合、安全边界等问题，进一步梳理了高速飞行器的失控成因，包括飞行环境、飞行姿态、控制耦合、惯性耦合、动力学耦合等因素，在此基础上，回顾了一系列适用于飞行器设计的典型抗失控判据，如横航向稳定性参数、动态航向稳定性参数、横/航向操纵偏离参数、Weissman组合判据、横向稳定性特征参数等.这些参数或判据不仅可以在设计初期预测气动布局的好坏及其对操稳特性的影响，帮助工程师改进气动布局以使飞行器获得最佳的性能，还可用来预测飞行器在当前气动布局下所需要的控制资源以帮助飞行器合理应对耦合的影响，最后在设计完成后还可用这些判据分析飞行器飞行过程中的稳定性以及控制策略的合理性.Abstract: The confusion faced by the high speed aircraft design, such as static stability, directional control, three channel coupling and safety limits, was introduced at the beginning of the paper. On the basis of combing the causes of high speed aircraft out of control, a series of operation and stability criteria suitable for aircraft design have been summarized in the paper. These criteria include lateral/directional aerodynamic static stability, dynamic directional stability parameter, lateral control (or aileron alone) departure parameter, Weissman criterion plane, lateral-directional stability dominant parameter and so on. Such criteria can not only predict the quality of aerodynamic layout and its influence on operation and stability characteristics in the early stage of aircraft design, but also can help engineers to improve the aerodynamic layout to get better performance of aircrafts. The control resources related to aircraft layout can be forecasted by the criteria, which help the aircraft cope with the influence of coupling reasonably. Finally, these criteria can be used to analyze the stability in the flight process and the rationality of the control strategy after the design.
-
图 1 改进后的Cnβ, dyn和LCDP组合操稳特性判据平面
Figure 1. Plot of depature and spin susceptibility criteria

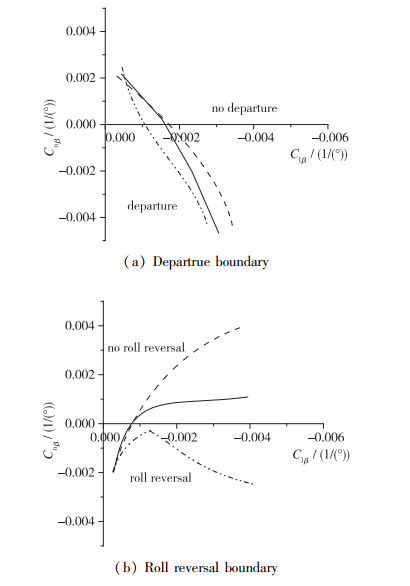

图 3 Cnβ-Clβ, 和Cnδa判据平面
Figure 3. Bihrle applied research design guidelines for departure susceptibility and roll reversal

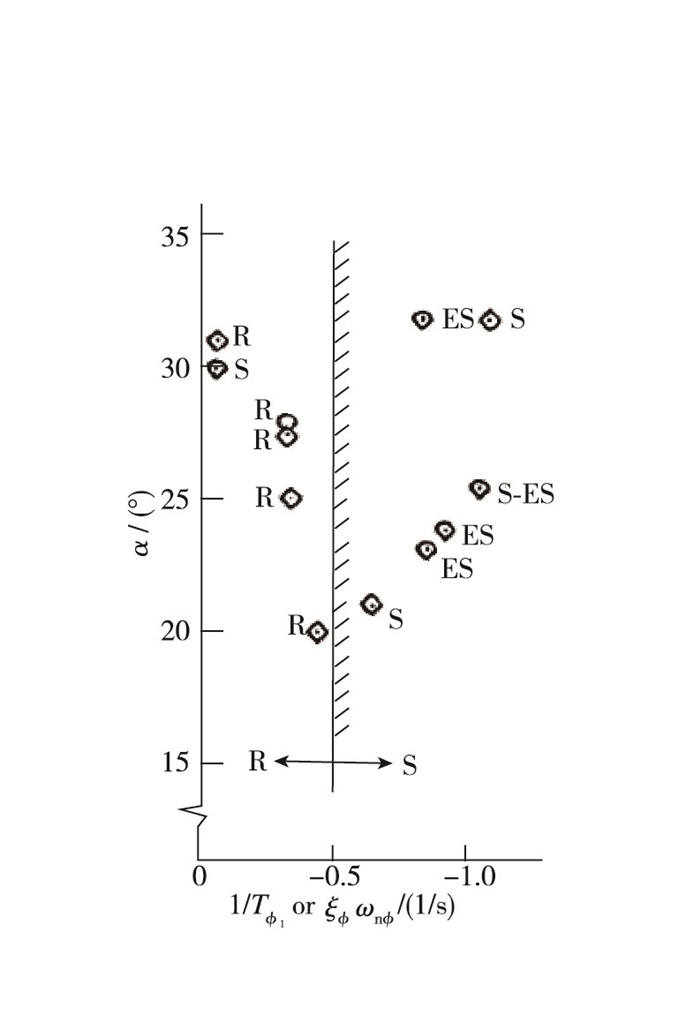

图 4 偏离敏感等级随1/Tϕ1或ξϕωnϕ变化趋势
Figure 4. Departure susceptibility rating versus lateral closed-loop divergence potential, 1/Tϕ1 or ξϕωnϕ
图 5 Kalviste稳定参数对攻角和侧滑角的稳定域图
Figure 5. Kalviste stability parameters versus angle- of-attack and sideslip angle
表 1 耦合特性引发飞行事故一览表
Table 1. List of flight accidents caused by the coupling characteristics
times vehicles Ma accidents/events causes 1953.12 Bell X-1A 2.44 The aircraft was temporatily out of control, with the ±8g normal overload appeared alternately, and the pilot fell into a semi-coma rolling inertia coupling 1954.10 X-3 / The aircraft rolled quickly to the left, and the angle of attack and sideslip deviated by more than 20°, causing the plane to get out of control inertia coupling 1954.10 F-100A / Inertial coupling induced the aircraft to get out of control, causing serious injuries to the pilot inertia coupling 1955 YF-102 / Inertial coupling caused roll angle deviation of up to -30° and angle of attack deviation of -12° inertia coupling 1956.9 Bell X-2 3.2 Rolling control induced the directional departure, further induced ±6g normal overload alternately, and finally the aircraft entered sub-sonic spin lateral-directional static coupling 1959 X-15X-15A-2 6.7 The ventral fin caused roll instability and induced side slip oscillation. After the removal of the ventral fin, the rolling static stability and direction dynamic stability were improved lateral-directional dynamic coupling
