HU Jiang-yu, ZHOU Jin, PAN Yu, et al. Experimental Investigation on Heat Transfer Instability of Kerosene at Supercritical Pressure[J]. PHYSICS OF GASES, 2017, 2(1): 57-63. DOI: 10.19527/j.cnki.2096-1642.2017.01.007
Citation:
HU Jiang-yu, ZHOU Jin, PAN Yu, et al. Experimental Investigation on Heat Transfer Instability of Kerosene at Supercritical Pressure[J]. PHYSICS OF GASES, 2017, 2(1): 57-63. DOI: 10.19527/j.cnki.2096-1642.2017.01.007
Abstract:

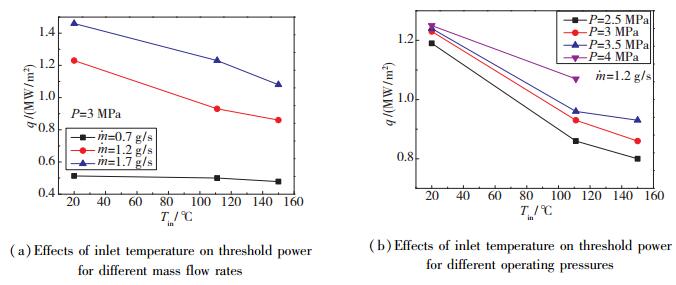

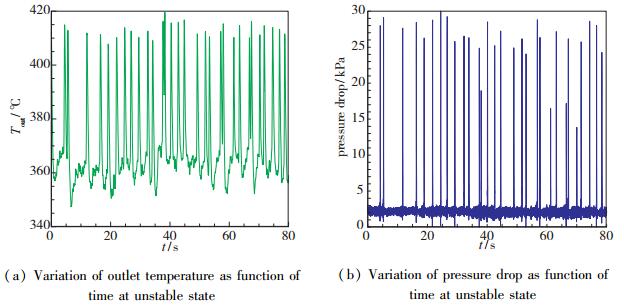

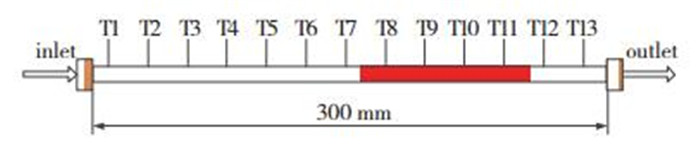

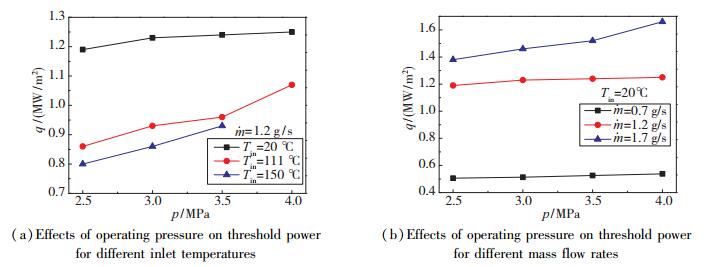

The flow and heat transfer instabilities of kerosene flowing in a vertical upward circular tube were experimentally investigated. The tube is 1mm in diameter and 300 mm in length. Pressure ranges from 2.5~4MPa, mass flow rate ranges from 0.7~1.7g/s and inlet temperature ranges from 300~520K. Results indicate that heat transfer instability appears when the applied heating power exceeds a threshold value. It is found that the instability threshold power increases with the increasing of pressure and mass flow rate while it decreases with the increasing of inlet temperature. Heat transfer instability will not happen when inlet temperature reaches a certain value. At the initial state of the instability, the outlet temperature rises rapidly while the temperature of the section wall drops rapidly. Heat transfer coefficient increases during the instability. Increasing of the local flow velocity leads to the pressure pulsation and causes sounds. After the instability, the outlet temperature keeps almost constant while the wall temperature keeps rising until the next instability happens.
Jiang D F, Xu H, Deng B, et al. Effect of oxygenated treatment on corrosion of the whole steam-water system in supercritical power plant[J]. Applied Thermal Engineering, 2016, 93: 1248-1253. DOI: 10.1016/j.applthermaleng.2015.10.098
[2]
Yoshida S, Mori H. Heat transfer to supercritical pressure fluids flowing in tubes[C]. Proceedings of the 1st International Symposium on Supercritical Water-Cooled Reactor Design and Technology, Tokyo, 2000.
Chatoorgoon V. Non-dimensional parameters for static instability in supercritical heated channels[J]. Internati-onal Journal of Heat and Mass Transfer, 2013, 64: 145-154. DOI: 10.1016/j.ijheatmasstransfer.2013.04.026
[5]
Ampomah-Amoako E, Ambrosini W. Developing a CFD methodology for the analysis of flow stability in heated channels with fluids at supercritical pressures[J]. Annals of Nuclear Energy, 2013, 54: 251-262. DOI: 10.1016/j.anucene.2012.11.002
[6]
Zhou W X, Yu B, Qin J, et al. Mechanism and influencing factors analysis of flowing instability of supercritical endothermic hydrocarbon fuel within a small-scale channel[J]. Applied Thermal Engineering, 2014, 71: 34-42. DOI: 10.1016/j.applthermaleng.2014.06.002
[7]
Su Y L, Feng J, Zhao H, et al. Theoretical study on the flow instability of supercritical water in the parallel chan-nels[J]. Progress in Nuclear Energy, 2013, 68: 169-176. DOI: 10.1016/j.pnucene.2013.06.005
[8]
Xi X, Xiao Z J, Yan X, et al. Numerical simulation of the flow instability between two heated parallel channels with supercritical water[J]. Annals of Nuclear Energy, 2014, 64: 57-66. DOI: 10.1016/j.anucene.2013.09.017
Garimella S, Mitra B, Andresen U C, et al. Heat transfer and pressure drop during supercritical cooling of HFC refrigerant blends[J]. International Journal of Heat and Mass Transfer, 2015, 91: 477-493. DOI: 10.1016/j.ijheatmasstransfer.2015.07.024
[11]
Wang N, Pan Y, Zhou J. Research status of active cooling of endothermic hydrocarbon fueled scramjet engine[J]. Proceedings of the Institution of Mechanical Engineers, Part G: Journal of Aerospace Engineering, 2013, 227(11): 1780-1794. DOI: 10.1177/0954410012463642
[12]
Fu Y C, Tao Z, Xu G Q, et al. Experimental study of flow distribution for aviation kerosene in parallel helical tubes under supercritical pressure[J]. Applied Thermal Engineering, 2015, 90: 102~109. DOI: 10.1016/j.applthermaleng.2015.06.082
[13]
Zhu J Q, Tao Z, Deng H W, et al. Numerical investigation of heat transfer characteristics and flow resistance of kerosene RP-3 under supercritical pressure[J]. International Journal of Heat and Mass Transfer, 2015, 91: 330-341. DOI: 10.1016/j.ijheatmasstransfer.2015.07.118
[14]
Hines W S, Wolf H. Pressure oscillations associated with heat transfer to hydrocarbon fluids at supercritical pressures and temperatures[J]. ARS Journal, 1962: 361-366. DOI: 10.2514/8.6020
[15]
Hitch B, Karpuk M. Experimental investigation of heat transfer and flow instabilities in supercritical fuels[R]. AIAA 1997-3043, 1997.
[16]
Hitch B, Karpuk M. Enhancement of heat transfer and elimination of flow oscillations in supercritical fuels[R]. AIAA 1998-3759, 1998.
[17]
Wang H, Zhou J, Pan Y, et al. Experimental investiga-tion on the onset of thermo-acoustic instability of supercritical hydrocarbon fuel flowing in a small-scale channel[J]. Acta Astronautica, 2015, 117: 296-304. DOI: 10.1016/j.actaastro.2015.08.009
[18]
Wang H, Zhou J, Pan Y, et al. Experimental investiga-tion on the characteristics of thermo-acoustic instability in hydrocarbon fuel at supercritical pressures[J]. Acta Astronautica, 2016, 121: 29~38. DOI: 10.1016/j.actaastro.2015.12.047
Deng H W, Zhu K, Xu G Q, et al. Isobaric specific heat capacity measurement for kerosene RP-3 in the near-critical and supercritical regions[J]. Journal of Chemical and Engineering Data, 2012, 57, 263-268. DOI: 10.1021/je200523a
[21]
Deng H W, Zhang C B, Xu G Q, et al. Viscosity measurements of endothermic hydrocarbon fuel from (298 to 788) K under supercritical pressure conditions[J]. Journal of Chemical and Engineering Data, 2012, 57, 358-365. DOI: 10.1021/je200901y
[22]
Deng H W, Zhang C B, Xu G Q, et al. Density measurements of endothermic hydrocarbon fuel at sub-and supercritical conditions[J]. Journal of Chemical and Enginee-ring Data, 2011, 56: 2980-2986. DOI: 10.1021/je200258g
