关于高超声速飞行器新热障的认知与探讨

艾邦成 陈思员 陈智 苗文博 罗晓光 邓代英 韩海涛 俞继军

艾邦成, 陈思员, 陈智, 苗文博, 罗晓光, 邓代英, 韩海涛, 俞继军. 关于高超声速飞行器新热障的认知与探讨[J]. 气体物理, 2023, 8(4): 1-17. doi: 10.19527/j.cnki.2096-1642.1034
引用本文: 艾邦成, 陈思员, 陈智, 苗文博, 罗晓光, 邓代英, 韩海涛, 俞继军. 关于高超声速飞行器新热障的认知与探讨[J]. 气体物理, 2023, 8(4): 1-17. doi: 10.19527/j.cnki.2096-1642.1034
AI Bang-cheng, CHEN Si-yuan, CHEN Zhi, MIAO Wen-bo, LUO Xiao-guang, DENG Dai-ying, HAN Hai-tao, YU Ji-jun. Cognition and Discussion on New Thermal Barrier of Hypersonic Vehicles[J]. PHYSICS OF GASES, 2023, 8(4): 1-17. doi: 10.19527/j.cnki.2096-1642.1034
Citation: AI Bang-cheng, CHEN Si-yuan, CHEN Zhi, MIAO Wen-bo, LUO Xiao-guang, DENG Dai-ying, HAN Hai-tao, YU Ji-jun. Cognition and Discussion on New Thermal Barrier of Hypersonic Vehicles[J]. PHYSICS OF GASES, 2023, 8(4): 1-17. doi: 10.19527/j.cnki.2096-1642.1034

关于高超声速飞行器新热障的认知与探讨

doi: 10.19527/j.cnki.2096-1642.1034
基金项目:

国家自然科学基金-联合基金重点支持项目 U20B2017

国家自然科学基金-联合基金重点支持项目 U21B2051

国家自然科学基金-联合基金重点支持项目 U22B20135

详细信息
    作者简介:

    艾邦成(1974-)男, 博士, 研究员, 主要研究高温气体动力学与飞行器热防护。E-mail: stara@sohu.com

    通讯作者:

    陈思员(1984-)男, 博士, 研究员, 主要研究飞行器气动热与热防护。E-mail: siyuanbuaa@163.com

  • 中图分类号: V414.9

Cognition and Discussion on New Thermal Barrier of Hypersonic Vehicles

  • 摘要: 未来高超声速飞行器向更远的航程、更快的速度等航空航天技术融合的方向发展,不断突破飞行速度边界、巡弋空间边界。飞行速度不断提高,热载荷越来越严酷,同时防热结构多功能一体化设计的需求以及结构质量强约束等新的特点对热防护提出了全新的要求和挑战。针对这些全新的挑战,热防护呈现出新的特点和需求,防热需求发生重大变化,已有技术和现有设计手段存在明显不足,对相关科学问题的认知存在明显缺失,亟待探索新的技术途径。基于此,提出新热障的概念,分析了长时间加热、非烧蚀热防护、精细化热环境分析等方面的研究现状,指出了新热障问题的具体内涵和重要发展方向,回顾了热防护技术正在探索的新方向和新方法,包括低烧蚀/非烧蚀技术、系统基因组材料设计方法、疏导式创新热防护技术等,认为解决新热障是一个突破现有热防护技术极限的科学技术问题,需要通过多途径联合、多方法综合、多学科交叉突破这一高超声速飞行器热防护瓶颈问题,从精细化热环境预示与热环境控制、多尺度热防护材料性能预示、全新的防隔热材料设计途径、创新的热结构等方面入手,探索飞行器新热障问题的创新解决方案,并对相关技术研究进展进行了总结。



  • 图  1  未来典型高超声速飞行器新的速域和空域

    Figure  1.  New velocity and airspace of furture vehicles

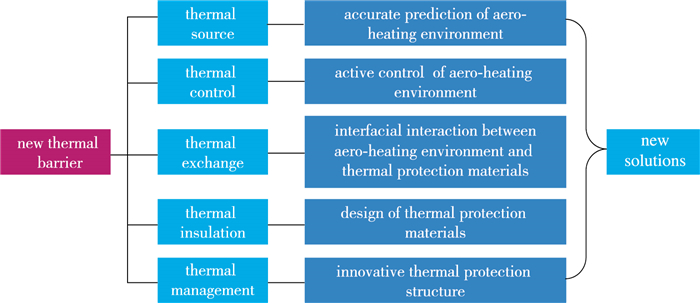

    图  2  新热障问题主要研究思路

    Figure  2.  Main solutions of new thermal barrier problerms

    图  3  猎鹰9数值模拟典型网格[1]

    Figure  3.  Typical grids in numerical simulation for Falcon-9[1]

    图  4  HIFiRE-5飞行器风洞实验转捩热流分布[13]

    Figure  4.  Wind tunnel heat flux result of HIFiRE-5[13]

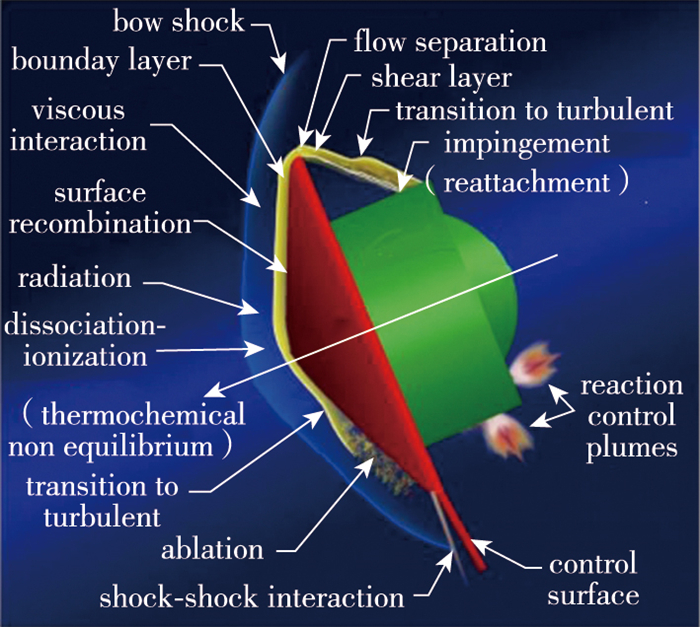

    图  5  飞行器复杂物理效应示意图[28]

    Figure  5.  Schematic diagram of complex physical effects of vehicles[28]

    图  6  Knudsen层典型速度及温度分布

    Figure  6.  Typical velocity and temperature distribution of Knudsen layer

    图  7  热环境主动控制概念示意图

    Figure  7.  Schematic diagram of aeroheating environment active control

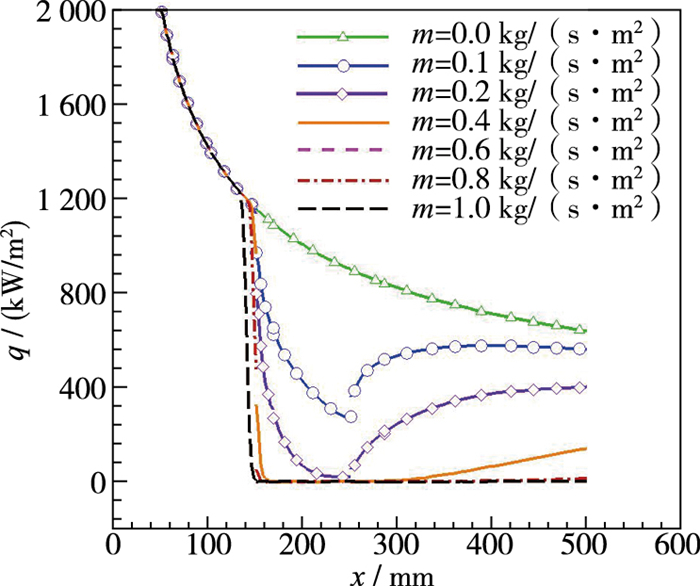

    图  8  不同引射量表面热流分布对比

    Figure  8.  Heat flux distribution of different injection gas mass flow rates

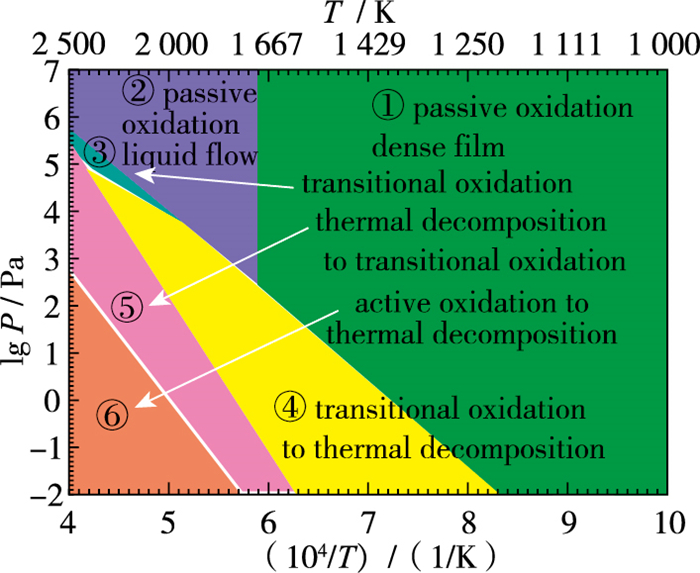

    图  9  氮化硅材料表面复杂氧化机制示意图[58]

    Figure  9.  Schematic diagram of surficial oxidation mechanism of silicon nitride[58]

    图  10  同样加热状态下“被动氧化”向“主动氧化”转变典型温度变化[63]

    Figure  10.  A typical passive-to-active transition under the same plasma generator condition[63]

    图  11  不同方法测得的典型高温材料催化系数

    Figure  11.  Catalytic coefficients of different test methods for typical materials

    图  12  非烧蚀表层材料样品

    Figure  12.  Surface layer sample of typical non-ablation material

    图  13  梯度非烧蚀防热材料典型应用

    Figure  13.  Typical application of graded non-ablation material

    图  14  疏导式热防护原理

    Figure  14.  Illumination of thermal conduction and consummation

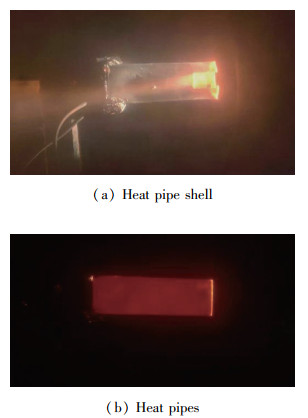

    图  15  地面考核实验

    Figure  15.  Wind tunnel tests

    图  16  复杂结构成型及超材料强化研究

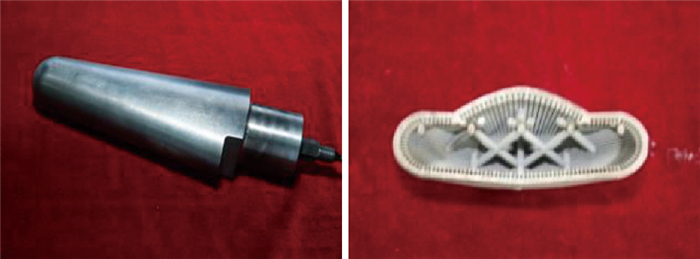

    Figure  16.  Complex structure and its enhancement

    图  17  工程化应用研究

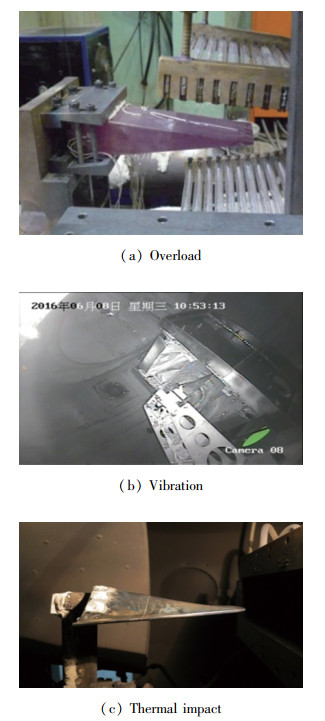

    Figure  17.  Engineering investigation

    图  18  强热量耗散主动冷却热防护

    Figure  18.  Illumination of thermal control by phase transition

    图  19  强热量耗散主动冷却效果

    Figure  19.  Results of thermal control by phase transition

    图  20  疏导-燃油复合防热方案

    Figure  20.  Mechanism of multiple thermal protection

    图  21  疏导-燃油复合防热效果

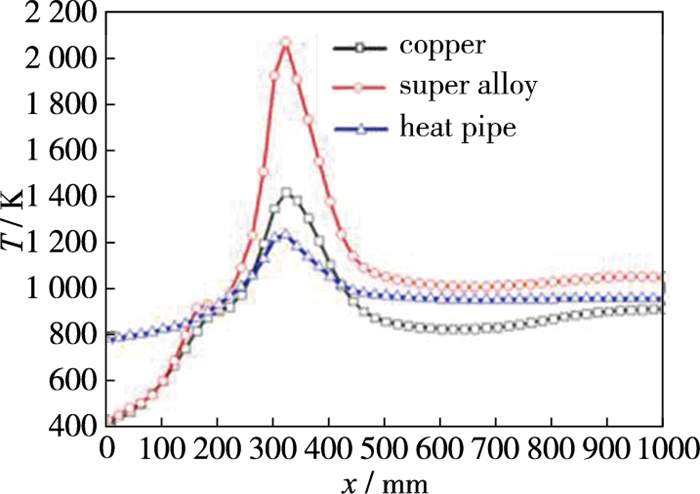

    Figure  21.  Results of multiple thermal protection

    图  22  疏导-燃油复合防热应用研究

    Figure  22.  Engineering investigation of multiple thermal protection

    图  23  气膜孔隙的优化设计

    Figure  23.  Optimized design of film hole

    图  24  端头模型的电弧风洞红外热图

    Figure  24.  Temperature field of head model in arc jet tests

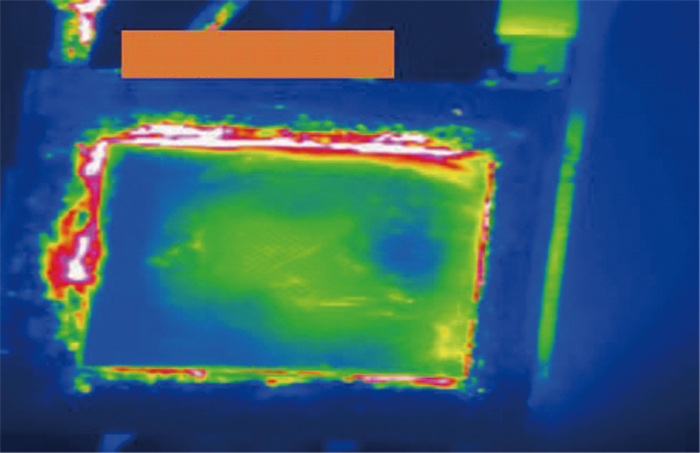

    图  25  平板模型的电弧风洞红外热图

    Figure  25.  Temperature field of flat model in arc jet tests

    表  1  平板表面摩擦阻力受适应系数影响

    Table  1.   Influence of the accommodation coefficient on skin friction of the plate

    H/km no slip σv=1.0 σv=0.5 reduction rate of friction
    30 2.26×10-3 2.25×10-3 2.23×10-3 0.62%
    60 1.97×10-2 1.94×10-2 1.83×10-2 5.50%
    90 3.79×10-2 2.67×10-1 1.08×10-1 59.47%
    下载: 导出CSV
